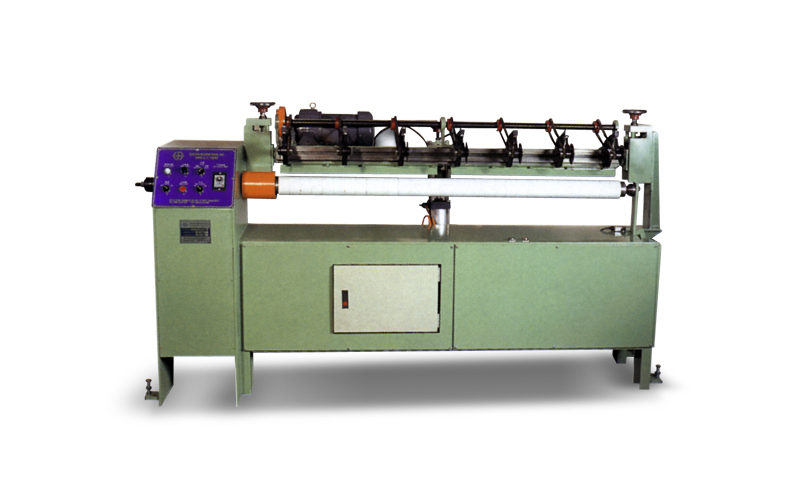

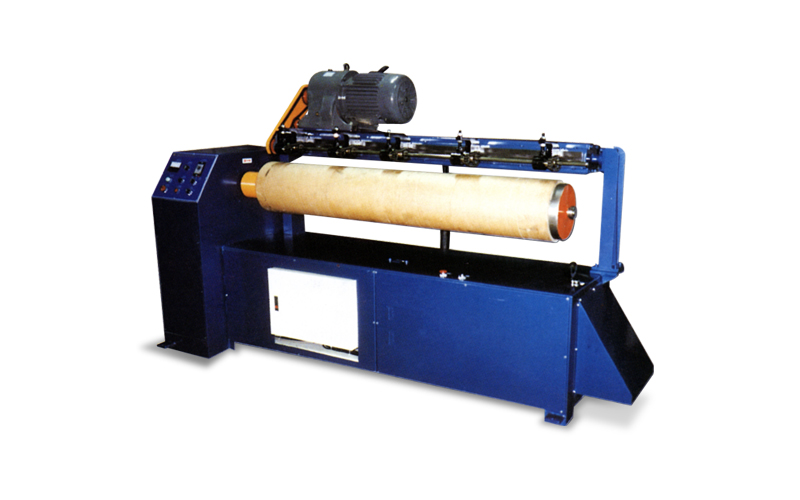

紙管切管機 Paper Tube Re-Cutter ：
(HW-303A)
★ 切管機使用於長型紙管的再切段或端口的修齊。
★ 圓切刀提供完全平整的切口及精確的切斷長度。
★ HW-303B氣壓式退管提供高生產力的膠帶紙心成品。
★ 圓切刀提供完全平整的切口及精確的切斷長度。
★ HW-303B氣壓式退管提供高生產力的膠帶紙心成品。
★ Paper Tube Re-Cutter is provided for further cutting of long paper tube.
★ Score knife cutting gives the perfect and neat cut edge of desired short tube.
★ Air discharging of HW-303B offers higher productivity of OPP tape core.
★ Score knife cutting gives the perfect and neat cut edge of desired short tube.
★ Air discharging of HW-303B offers higher productivity of OPP tape core.
| HW-303A 紙管切管機 | |||
|---|---|---|---|
| 工作規格 | HW-303A-L | HW-303A-M | HW-303A-S |
| 適用紙管內徑 : | Ø200-400 mm | Ø50-200 mm | Ø30-77 mm |
| 適用紙管厚度 : | 1-20 mm | 1-20 mm | 1-8 mm |
| 適用紙管長度 : | 1,600 mm | 1,600 mm | 1,600 mm |
| 最小切斷長度 : | 120 mm | 100 mm | 100 mm |
| 切斷刀具 : | 5 sets | 8 sets | 8 sets |
| HW-303A Paper Tube Re-Cutter | |||
|---|---|---|---|
| WORKING SPECIFICATION | HW-303A-L | HW-303A-M | HW-303A-S |
| Applicable I.D. of Paper Tube : | Ø200-400 mm | Ø50-200 mm | Ø30-77 mm |
| Applicable Wall Thickness : | 1-20 mm | 1-20 mm | 1-8 mm |
| Applicable Parent Tube Length : | 1,600 mm | 1,600 mm | 1,600 mm |
| Minimum Cutting Length : | 120 mm | 100 mm | 100 mm |
| Score Cutting Knife: | 5 sets | 8 sets | 8 sets |
